1000kg U Shape Electric Scissor Table 240V 760mm

1000kg U Shape Electric Scissor Table 240V 760mm

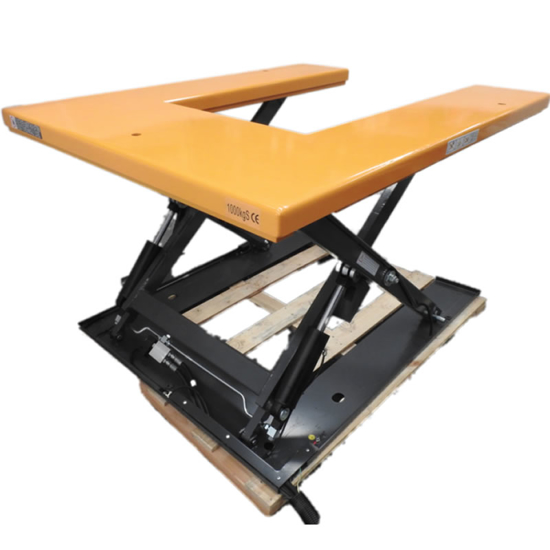

This "U" shaped electric scissor lift platform is ideal for lifting pallets or cages to safe working height and suitable for use as a feeding table on an assembly line. It is High-quality heavy-duty steel construction with powder coated paint finish.

This electric scissor table is supplied with remote power system and control unit with UP, DOWN, and EMERGENCY STOP controls.

The "U" shape allows a pallet truck to position the pallet/cage onto the lift platform. The overload by-pass valve protects the operator and the cargo.

Technical Specification:

• Capacity: 1000kg

• Min-Max Height: 80-760mm

• Table Size: 1450x1140mm

• Table inner U Size: 1050x585mm

• Lifting to Top Time: 18s

• Max Capacity Lifting Speed: 42mm/s

• Max Capacity Drop Down Speed: 48mm/s

• Motor: 0.75KW

• Power Supply: 240V, Single Phase

• Net Weight: 235kg

Warranty: 1 Year labour & parts warranty.

The color of the photo may vary from the actual product.

In Stock Melbourne.
